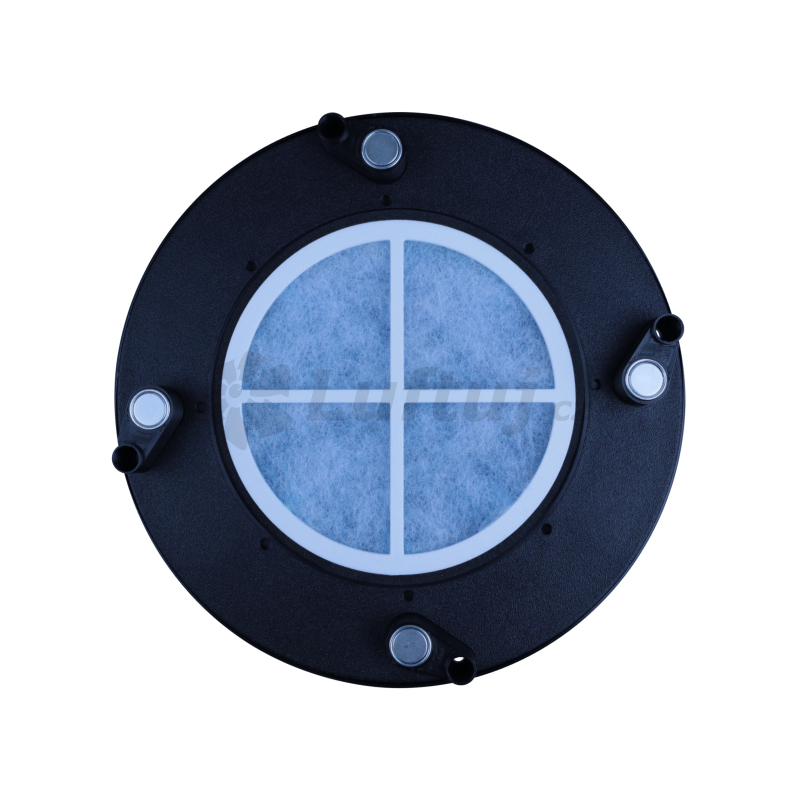

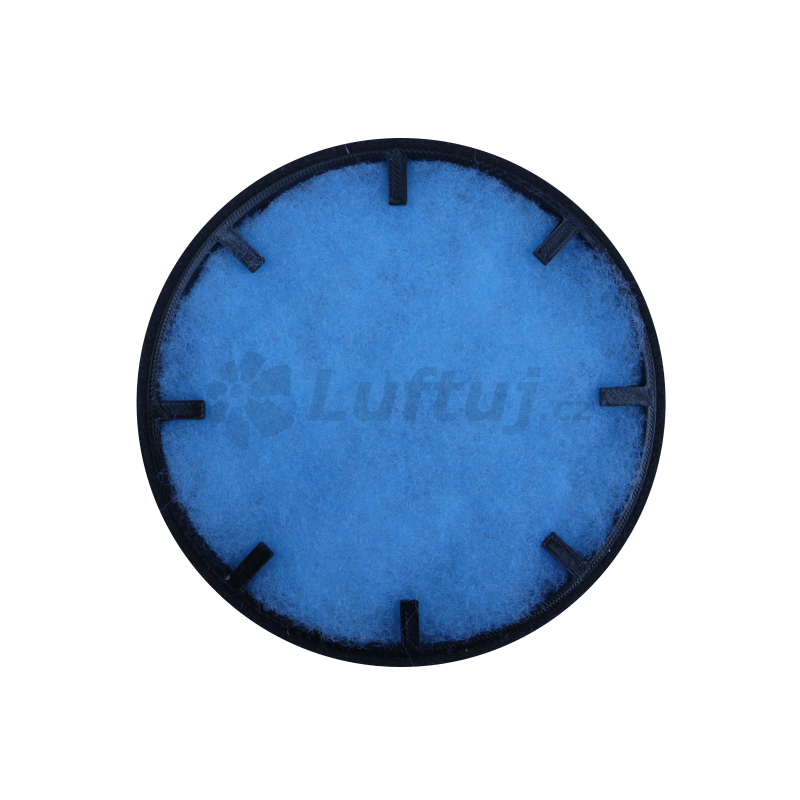

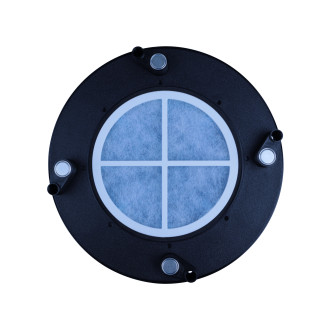

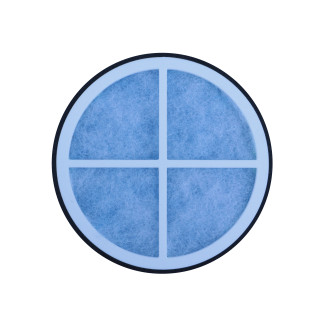

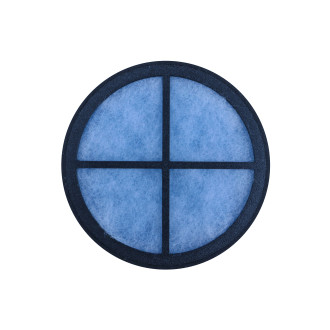

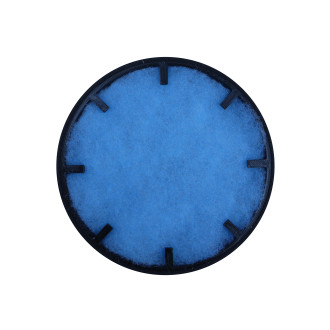

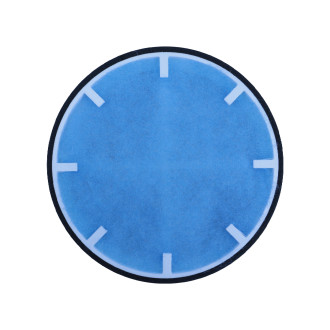

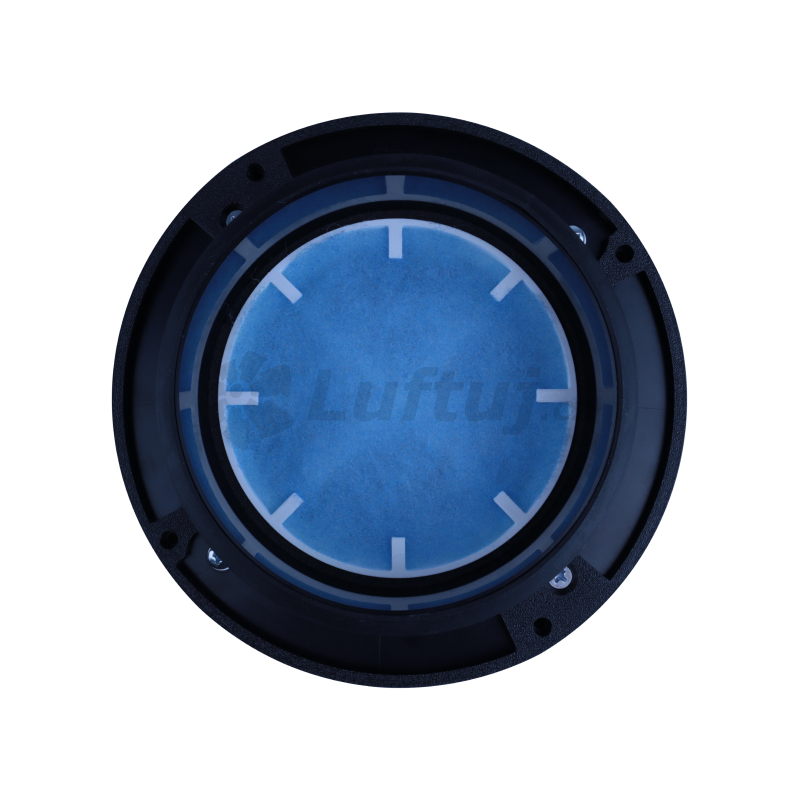

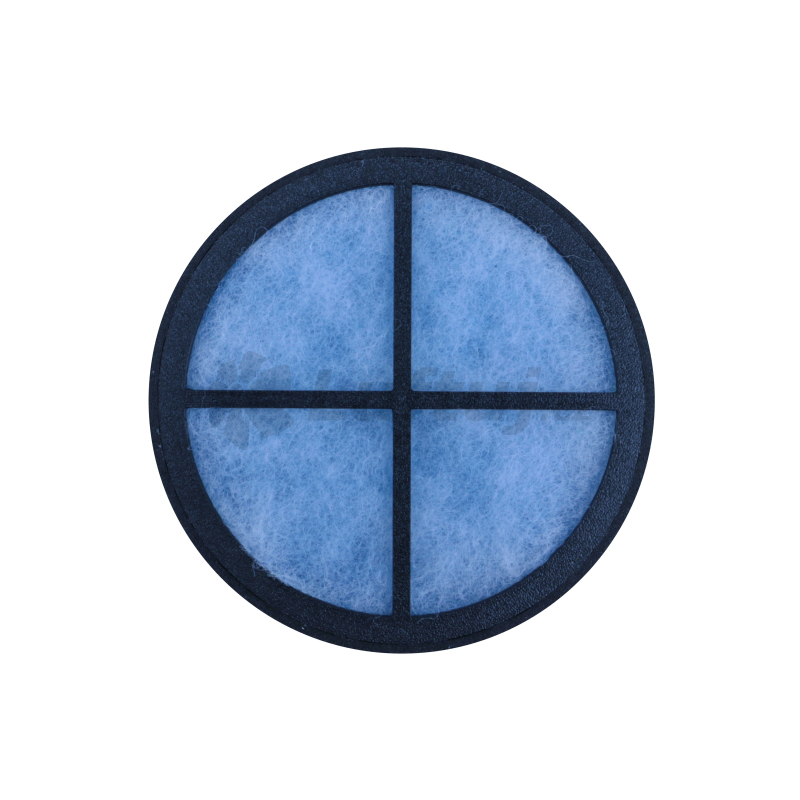

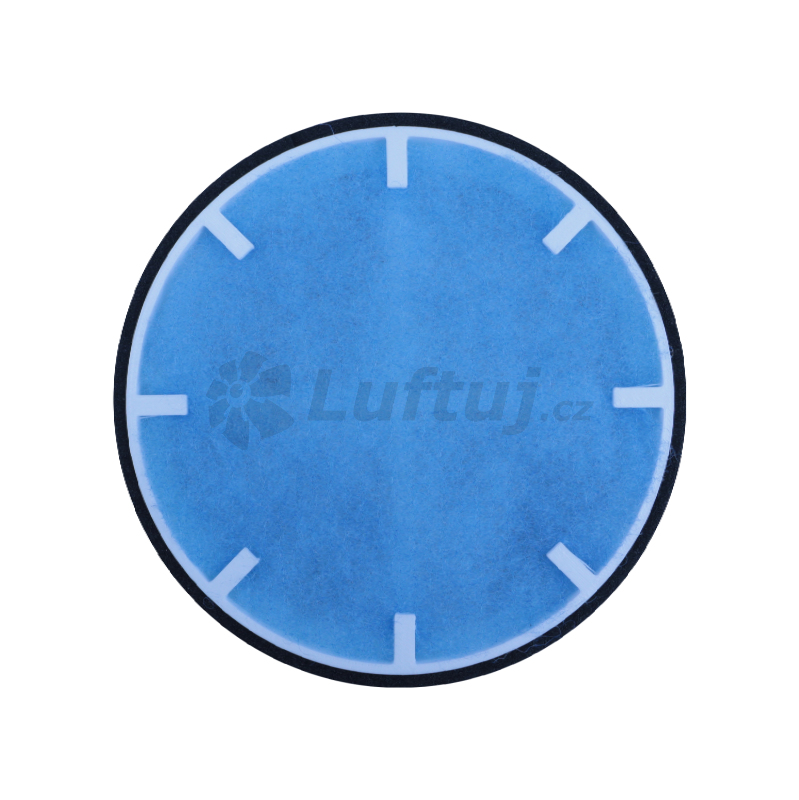

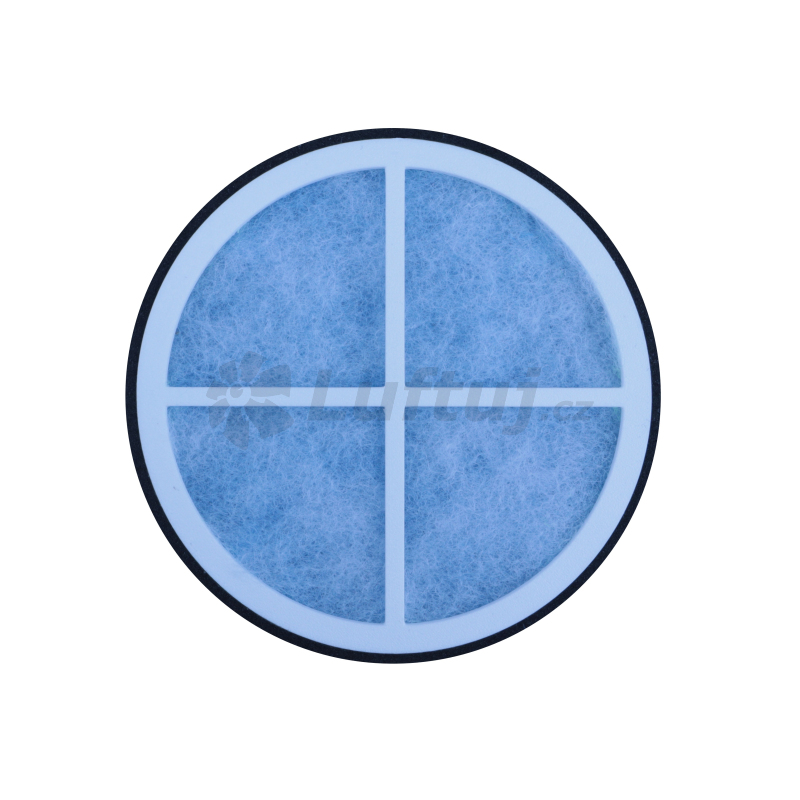

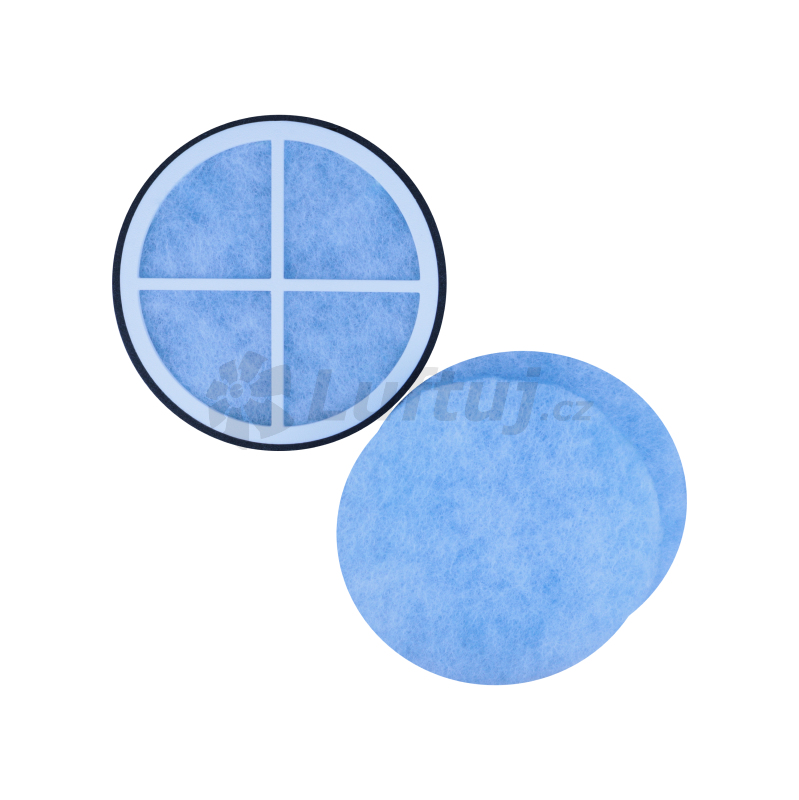

LUFTOMET ACCESSORIES filter ring 3xG3

The extension piece for LUFTOMET® boxes and FLAT grids is suitable for extending boxes for installing the LUFTOMET® system in masonry walls On one side of the wall, the box is connected with screws (LP-SM-4) to the plastic edge of the extension piece. The extension piece is mounted in the wall and possibly shortened to the required length. After finalizing the wall (plaster, etc.), 4 dowels are fitted and an inset is installed in the extension piece, which is anchored to the wall using LP-S-4 screws. A grid is then placed in the inset (magnetic or mechanical attachment depending on the type of grid). Material:  Galvanized steel Length of the extension piece: LF-A-PP-100 length 130 mm LF-A-PP-150 length 180 mm LF-A-PP-200 length 230 mm Package includes: 1pc Extension piece (metal part) 4pcs DuoPower dowels 4pcs of LP-S-4 screws 4pcs of LP-SM-4 screws Wrapped in foil.

Products under the LUFTOMET®  Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET®  Flat grilles provide an excellent aesthetic solution. Our Flat Plenum Boxes are: • sized for flexible plastic pipes with a diameter of 75 and 90 mm and metal ducting SPIRO 100 mm • manufactured in 15 basic variants, where it is possible to choose whether the spigot contains a control damper or not • sized to be easily installed in plasterboard, drywall, partitions or bulkhead, boxes or false ceiling • thanks to the extension pieces, it can also be used in masonry constructions • equipped with sealing rings to ensure a high tightness of the connection between the plenum box and the duct • suitable for the supply and exhaust of normally polluted air (without chemical substances, etc.) • compatible with all types of LUFTOMET®  Flat Grilles • made of hygienic ABS Package includes: Box with spigot with or without a control damper. The package for the 75 and 90 mm dimensions includes a sealing and a locking ring. For the 100 mm size, the sealing ring is fitted on the spigot. Supplied without anchoring accessories. Packed in stretch film.

Company Luftuj s.r.o. takes great pride in being the producer of LUFTOMET architectural air diffusers. To learn more about our products, including how to get in touch with your local distributor, please visit our website at www.luftomet.com. TECHNICAL FEATURES LUFTOMET is the name for the product range of the end elements of the ventilation system with modern design. Technically sophisticated LUFTOMET brings fresh air into your home as well as light in the LUMEN version. Thanks to the Magnetic Force System it is easy to assemble and maintain. Any product can be easily and quickly exchanged for another at any time. - suitable for air supply and exhaust up to 100 m3/h - easy and tight installation thanks to the magnets and mounting ring with the EPDM rubber - specially designed for ducts 100,125 and 160 mm and the boxes of flexi system 90 and 75 mm - design plate size is 200x200 mm and circular version diameter is 200 mm - using special accessories air flow can be filtered, directed, and controlled PRODUCT CATEGORIES SKY for the ceiling installation - supply and exhaust air LUMEN for the ceiling installation - supply, exhaust air and illumination JET nozzle for the wall installation - supply air ACCESSORIES filtration, deflection, flow control, spare parts

Products under the LUFTOMET®  Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET®  Flat grilles provide an excellent aesthetic solution. Our Flat Plenum Boxes are: • sized for flexible plastic pipes with a diameter of 75 and 90 mm and metal ducting SPIRO 100 mm • manufactured in 15 basic variants, where it is possible to choose whether the spigot contains a control damper or not • sized to be easily installed in plasterboard, drywall, partitions or bulkhead, boxes or false ceiling • thanks to the extension pieces, it can also be used in masonry constructions • equipped with sealing rings to ensure a high tightness of the connection between the plenum box and the duct • suitable for the supply and exhaust of normally polluted air (without chemical substances, etc.) • compatible with all types of LUFTOMET®  Flat Grilles • made of hygienic ABS Package includes: Box with spigot with or without a control damper. The package for the 75 and 90 mm dimensions includes a sealing and a locking ring. For the 100 mm size, the sealing ring is fitted on the spigot. Supplied without anchoring accessories. Packed in stretch film.

LUFTOMET®  Wall products are end elements for air distribution systems. They are used on exterior building facades for air intake or exhaust. These outdoor facade covers stand out with their stylish design and high-quality craftsmanship, easy installation and maintenance, and very low pressure losses. Our Air diffusers are: • designed for ducts with diameters of 125, 160, and 200 mm • equipped with a sealing ring on the spigot making them suitable for all types of ducts (EPE, EPS, EPP, SPIRO, etc.) • suitable for fresh air intake and exhaust of normally polluted air (without chemical substances, etc.) • made of metal, carefully powder-coated (white RAL 9010, black RAL 9005 matte, anthracite RAL 7016), or made of stainless steel (1.4301) • equipped with a drip edge that diverts water drops away from the building facade and fitted with an insect screen Package includes: Outdoor facade cover (without mounting accessories). Packed in a stretch film.
