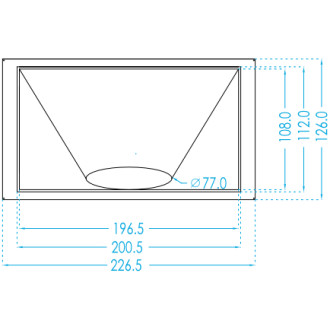

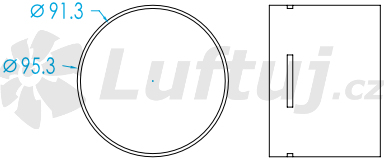

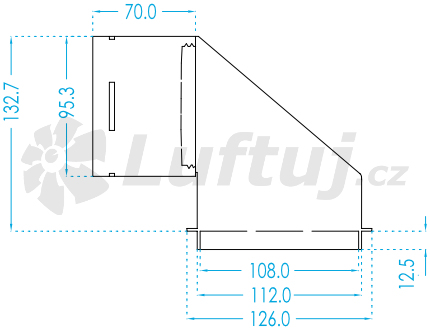

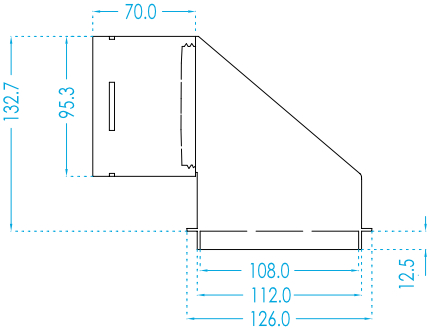

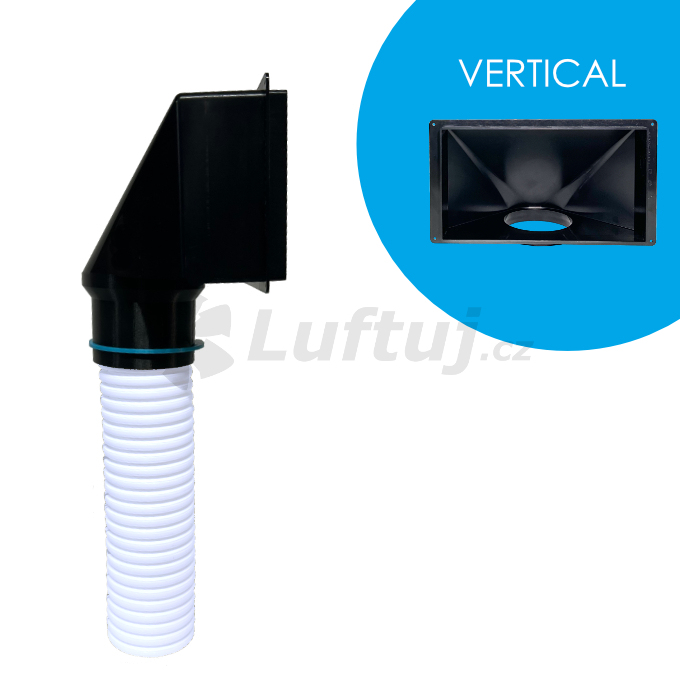

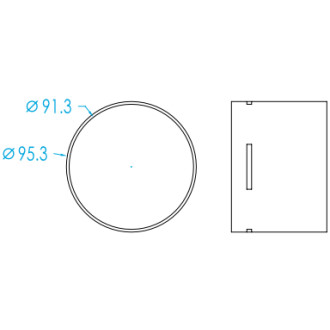

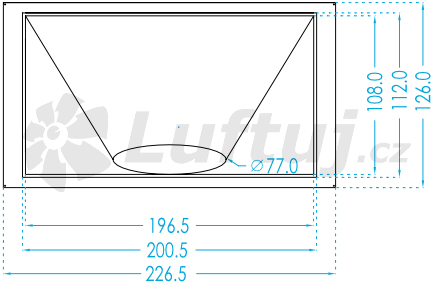

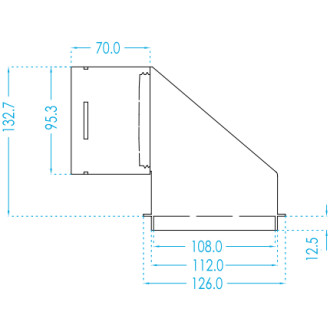

LUFTOMET Flat Plenum Box 90 mm, Vertical, H2

Products under the LUFTOMET®  Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET®  Flat grilles provide an excellent aesthetic solution Our Flat grilles are: • elegant aesthetic solution for air supply and exhaust • suitable for wall and ceiling installation • in rectangular shape with an external dimension of 232 x 132 mm • fully compatible with all types of LUFTOMET®  Flat Plenum Boxes and extension pieces • supplied with a mounting frame with neodymium magnets • available in a wide range of colours and shapes • for the Hexagon variant - possibility to regulate the air flow rate and throw lengths • made of flame-retardant PETG

Products under the LUFTOMET®  Flat name offer a comprehensive system of compatible components – plenum boxes and grilles. The Flat system is designed to solve ventilation needs primarily in wooden buildings and the renovation of family houses and apartments. It is ideal for situations where minimal spatial requirements for the ventilation distribution are essential. Additionally, LUFTOMET®  Flat grilles provide an excellent aesthetic solution Our Flat grilles are: • elegant aesthetic solution for air supply and exhaust • suitable for wall and ceiling installation • in rectangular shape with an external dimension of 232 x 132 mm • fully compatible with all types of LUFTOMET®  Flat Plenum Boxes and extension pieces • supplied with a mounting frame with neodymium magnets • available in a wide range of colours and shapes • for the Hexagon variant - possibility to regulate the air flow rate and throw lengths • made of flame-retardant PETG

The extension piece for LUFTOMET® boxes and FLAT grids is suitable for extending boxes for installing the LUFTOMET® system in masonry walls On one side of the wall, the box is connected with screws (LP-SM-4) to the plastic edge of the extension piece. The extension piece is mounted in the wall and possibly shortened to the required length. After finalizing the wall (plaster, etc.), 4 dowels are fitted and an inset is installed in the extension piece, which is anchored to the wall using LP-S-4 screws. A grid is then placed in the inset (magnetic or mechanical attachment depending on the type of grid). Material:  Galvanized steel Length of the extension piece: LF-A-PP-100 length 130 mm LF-A-PP-150 length 180 mm LF-A-PP-200 length 230 mm Package includes: 1pc Extension piece (metal part) 4pcs DuoPower dowels 4pcs of LP-S-4 screws 4pcs of LP-SM-4 screws Wrapped in foil.
