LUFTOMET Singlepack Lumen Illuminated Air Diffuser plastic circle dim black, black mounting frame
It ventilates, lights up and looks great
LUFTOMET® Lumen are end elements of ventilation systems with integrated LED panel. They are used to supply fresh air or exhaust-polluted indoor air in ventilation systems with heat recovery. LUFTOMET® Lumen is an innovative product designed to integrate illumination and ventilation. This cutting-edge solution resolves the collision of these two crucial aspects in any modern space.
 |
 |
 |
 |
 |
 |
 |
 |
Plenty of light for cooking and reading
• a great modern home accessory
• dimensioned for duct with a diameter of 100, 125 mm
• equipped with a dimmable 12V LED module with power input 7W, 650 lm luminous flux and IP20 protection
• supplied in three colour temperatures (3,000 K, 5,000 K, 6,500 K)
• equipped with a sealing rubber ensuring a high level of tightness for the connection between the diffuser and the duct (achieves tightness class D according to EN 15727) or for connection with plenum box, after removing the sealing ring, it can also be installed into the fitting (metal 90° bend, 45° bend, T piece, duct coupling etc.)
• manufactured in several colour and material design plate options (wood, plexiglass)
• suitable for the supply and exhaust of normally polluted air (without chemical substances, etc.)
• due to the safe 12V power supply, it is suitable for installation in all household rooms
• easy to install and maintain thanks to the patented design of a 12V power transfer system via neodymium magnets
Pressure Drop Values ΔP (Pa), Sound Power Levels A, LWA (dB), and Throw Length – Terminal Velocity 0.2 m/s (mm) in the technical sheet:
Choose the best design for your interior
LUFTOMET® Lumen brings a modern design to the HVAC industry that, combined with top-quality materials, will impress not only you and your architect but also your visitors.

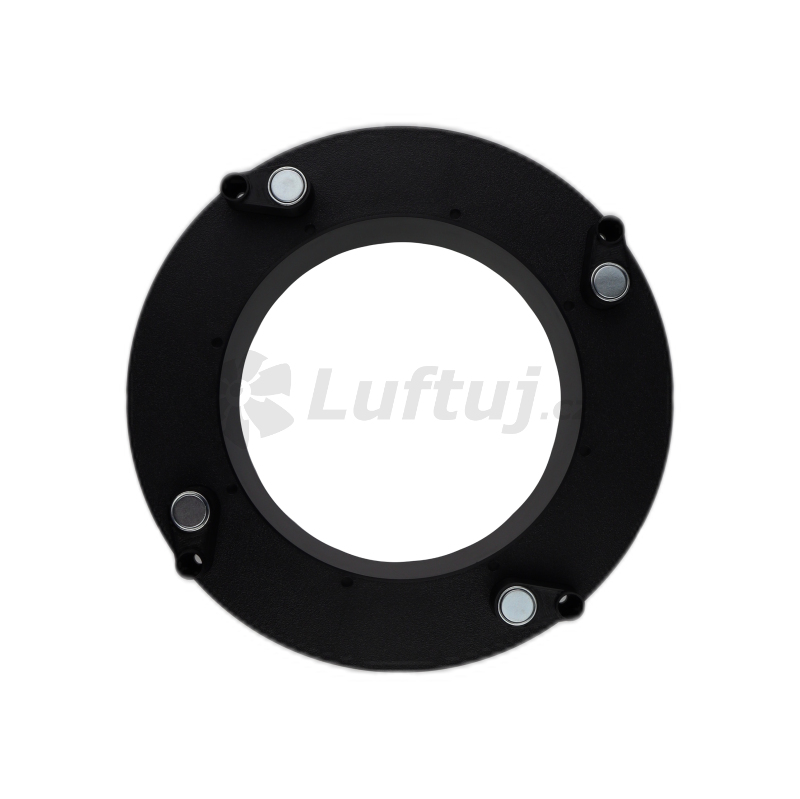

The easy installation and replacement of the design plate is ensured by four neodymium magnets on the mounting frame, which are available in white and black and in diameters of 100 and 125 mm.
Choose the right design plate for your interior with the installation examples in our Photo gallery or use our Selection Software:
***The LUFTOMET® Lumen design is protected by EUPIO-Registered Community Design.***
Easy to install in two clicks
Installation of the Lumen air outlet is easy and fast. The removable sealing ring on the mounting ring allows for quality connection to pipes and fittings.
Detail of attaching the plate to the mounting frame:
Easy installation and replacement of the design plate are ensured by four neodymium magnets with a load capacity of up to 16 kg.
Safety list magnets - download here
Declaration of Conformity - download here
LED Panel Characteristics - download here
Deflector Installation:
The deflector blocks the airflow from the diffuser in a specified direction. The deflector is not included in the package
Everything you need in one package
Singlepack package:
Design plate with LED module, mounting frame, dowels and screws, manual.
Package does NOT include: deflector, wires and transformer. Packed in a sturdy cardboard box.
A Czech product conquering the world
Design air vents LUFTOMET® Lumen are manufactured by Luftuj LtD in the Czech Republic and exported to several European countries.
Accessories
Air volume controller PF with noise dampening effect
Description These controllers are used to suppress noise and regulate airflow in ventilation systems with heat recovery. They are installed in ceiling boxes or in pipes just before the end element on the supply and exhaust pipes. The PF regulator is made of special plastic acoustic foam with very high damping properties. Adjusting the airflow is simple and quick - just turn the bottom ring. Use The silencer is designed for use in circular air distribution systems and is mounted directly in front of the valve or nozzle. It can be used for supply and exhaust pipes. It is used for smooth regulation of airflow and noise suppression of ventilation systems. This is especially useful in situations where the airflow is too high at a given location and control of the terminal element is not possible or generates a lot of noise. Construction The shock absorber consists of two foam discs: - damping element made of soft PUR acoustic polyurethane foam with excellent damping properties, coated on one side with a protective film - adjustment disc made of rigid polyethylene PE foam. Dimensions for a diameter of 125 mm:
from 7,81 EUR incl. VAT
in stock
Company Luftuj s.r.o. takes great pride in being the producer of LUFTOMET architectural air diffusers. To learn more about our products, including how to get in touch with your local distributor, please visit our website at www.luftomet.com. TECHNICAL FEATURES LUFTOMET is the name for the product range of the end elements of the ventilation system with modern design. Technically sophisticated LUFTOMET brings fresh air into your home as well as light in the LUMEN version. Thanks to the Magnetic Force System it is easy to assemble and maintain. Any product can be easily and quickly exchanged for another at any time. - suitable for air supply and exhaust up to 100 m3/h - easy and tight installation thanks to the magnets and mounting ring with the EPDM rubber - specially designed for ducts 100,125 and 160 mm and the boxes of flexi system 90 and 75 mm - design plate size is 200x200 mm and circular version diameter is 200 mm - using special accessories air flow can be filtered, directed, and controlled PRODUCT CATEGORIES SKY for the ceiling installation - supply and exhaust air LUMEN for the ceiling installation - supply, exhaust air and illumination JET nozzle for the wall installation - supply air ACCESSORIES filtration, deflection, flow control, spare parts
1,97 EUR incl. VAT
in stock
Company Luftuj s.r.o. takes great pride in being the producer of LUFTOMET architectural air diffusers. To learn more about our products, including how to get in touch with your local distributor, please visit our website at www.luftomet.com. TECHNICAL FEATURES LUFTOMET is the name for the product range of the end elements of the ventilation system with modern design. Technically sophisticated LUFTOMET brings fresh air into your home as well as light in the LUMEN version. Thanks to the Magnetic Force System it is easy to assemble and maintain. Any product can be easily and quickly exchanged for another at any time. - suitable for air supply and exhaust up to 100 m3/h - easy and tight installation thanks to the magnets and mounting ring with the EPDM rubber - specially designed for ducts 100,125 and 160 mm and the boxes of flexi system 90 and 75 mm - design plate size is 200x200 mm and circular version diameter is 200 mm - using special accessories air flow can be filtered, directed, and controlled PRODUCT CATEGORIES SKY for the ceiling installation - supply and exhaust air LUMEN for the ceiling installation - supply, exhaust air and illumination JET nozzle for the wall installation - supply air ACCESSORIES filtration, deflection, flow control, spare parts
1,97 EUR incl. VAT
in stock
LUFTOMET Lumen Spare Module LED 7W neutral
Spare part for LUFTOMET LUMEN - ceiling. Luminaire diameter 90 mm. Variants (color temperature): - cold = 6500 K - neutral = 5000 K - warm = 3000 K Characteristic: (in combination with LUMEN body) Luminosity: 650 lm Power supply: 12 V IP curfew rating: IP20 Power consumption: 7W The procedure for replacing the LED module is described in the instructions here: https://luftomet.com/download-1/
Price on request
in stock
Single color dimmer for LUFTOMET Lumen
Dimmer for LUFTOMET Lumen 12V Voltage 5-24V. Maximum total power consumption of LED tape or LED bulbs 144W - up to 5 outlets with LUFTOMET Lumen ventilation can be connected. This dimmer has a remote control, with which you can dim the light source either continuously or in larger steps - 100%, 50%, 25%. Alternatively, it can be dimmed using the Bright + and - function. You can also choose between predefined light effects such as flashing, light transitions, etc. In the light effects mode, you can also control their speed. The remote control is powered by 1 CR2025 button cell battery, which is included in the package. You can purchase a spare battery from us. Watch the instructional video on how to connect the dimmer to the rest of the system and how to control it with a remote control.
5,55 EUR incl. VAT
in stock
