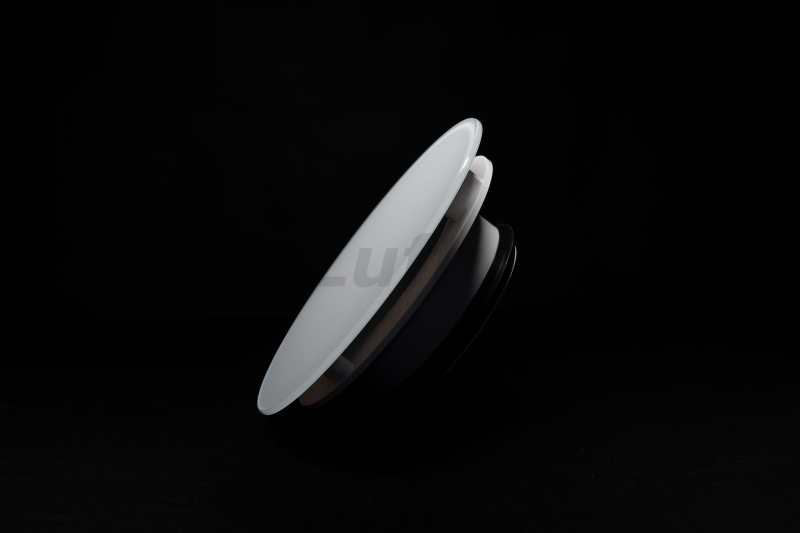

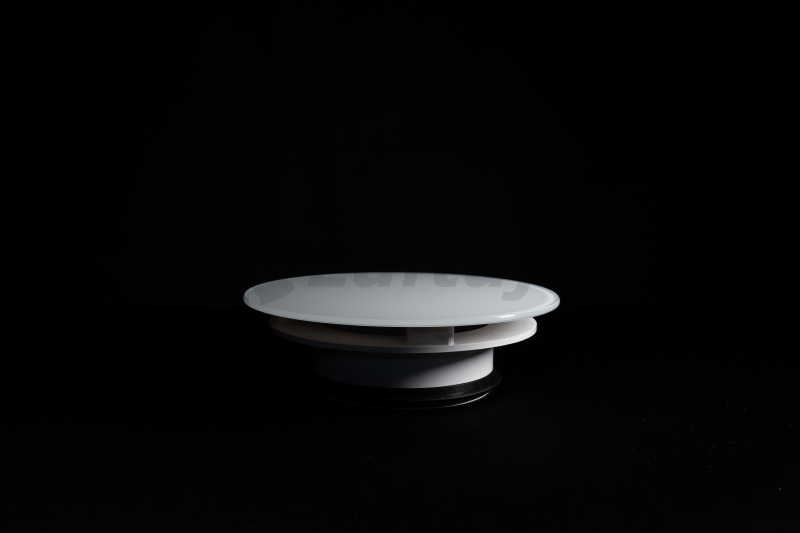

LUFTOMET Singlepack Sky Air Diffuser, glass circle dim white, white mounting frame
It ventilates and looks great
Introducing LUFTOMET® Sky – the end elements for residential ventilation systems. Designed for optimal performance, they ensure a supply of fresh air and efficient removal of polluted air within heat recovery ventilation systems. LUFTOMET® Sky air diffusers stand out with their innovative design, premium materials, and exceptional craftsmanship. The mounting frame with neodymium magnets guarantees effortless installation and maintenance.
 |
 |
 |
 |
 |
 |
 |
 |
A quiet companion that you won’t feel or hear
• a great modern home accessory
• dimensioned for pipes with a diameter of 100, 125 and 160 mm
• equipped with a sealing ring ensuring a high level of tightness for the connection between the diffuser and the duct (achieves
tightness class D according to EN 15727) or for connection with plenum box, after removing the sealing ring, it can also be fitted
into the fitting (metal 90° Bend, SPIRO duct coupling etc.)
• manufactured in several colour and material design plate options (glass, 3D glass, concrete, wood and plastic)
• suitable for the supply and exhaust of normally polluted air (without chemical substances, etc.)
Pressure Drop Values ΔP (Pa), Sound Power Levels A, LWA (dB), and Throw Length – Terminal Velocity 0.2 m/s (mm) in the technical sheet:
Ventilation can also be decorative
LUFTOMET® Sky brings modern design to ventilation, combining top-quality materials that will impress not only you and your architect but also your guests.

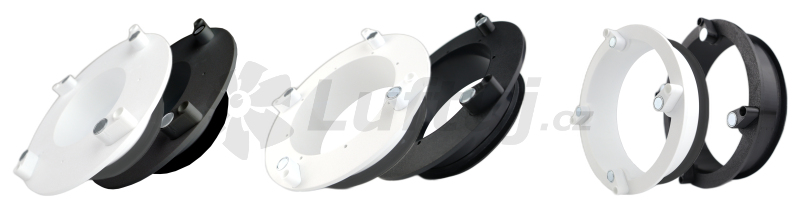

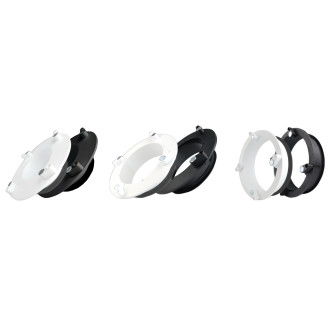

The easy installation and replacement of the design plate is ensured by four neodymium magnets on the mounting frame, which are available in white and black and in several diameters.
Choose the right design plate for your interior with the installation examples in our Photo gallery or use our Selection Software:
Installation of the Sky air outlet is easy and fast. The removable sealing ring on the mounting ring allows for quality connection to pipes and fittings.
Detail of attaching the plate to the mounting frame:
Easy installation and replacement of the design plate are ensured by four neodymium magnets with a load capacity of up to 16 kg.
Safety list magnets - download here
Position of the magnets on the mounting frame and the metal sheet:
The correct installation of the design plate is ensured by positioning rims, which define the proper alignment of the magnets and the metal sheet on the plate.
Deflector Installation:
The deflector blocks the airflow from the diffuser in a specified direction. The deflector is not included in the package
Everything you need in one package
Singlepack includes:
Design plate, mounting frame, dowels, screws and manual. Packed in a sturdy cardboard box. Package does NOT include deflector.
Coding:
A Czech product conquering the world
Design air vents LUFTOMET® Sky are manufactured by Luftuj LtD in the Czech Republic and exported to several European countries.
Accessories
Air volume controller PF with noise dampening effect
Description These controllers are used to suppress noise and regulate airflow in ventilation systems with heat recovery. They are installed in ceiling boxes or in pipes just before the end element on the supply and exhaust pipes. The PF regulator is made of special plastic acoustic foam with very high damping properties. Adjusting the airflow is simple and quick - just turn the bottom ring. Use The silencer is designed for use in circular air distribution systems and is mounted directly in front of the valve or nozzle. It can be used for supply and exhaust pipes. It is used for smooth regulation of airflow and noise suppression of ventilation systems. This is especially useful in situations where the airflow is too high at a given location and control of the terminal element is not possible or generates a lot of noise. Construction The shock absorber consists of two foam discs: - damping element made of soft PUR acoustic polyurethane foam with excellent damping properties, coated on one side with a protective film - adjustment disc made of rigid polyethylene PE foam. Dimensions for a diameter of 125 mm:
from 7,82 EUR incl. VAT
in stock
LUFTOMET socket filter set Filter ring with G3 fabric suitable for installation in LUFTOMET sockets ALWAYS INSTALL THE FILTER CLOTH SO THAT THE COARSER (BLUE) SIDE IS THE FIRST IN CONTACT WITH THE AIR FLOW. Package includes: - 1x filter ring with sealing rubber - 3x G3 filter fabric cut-out
Price on request
in stock
