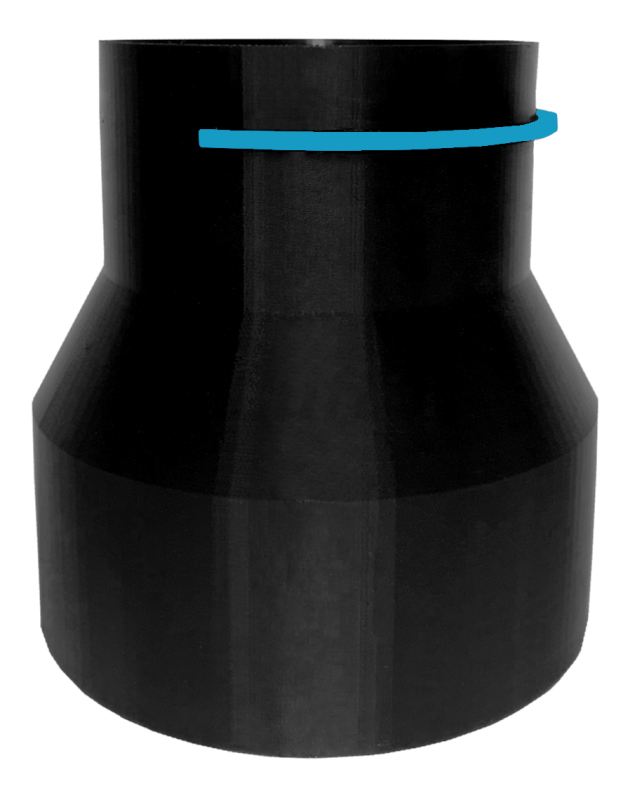

LUFTooL Adapter 90 mm Transition of Plastic Pipe to Fitting SPIRO
The LUFTooL Adapter offers a complete system of transitions between the 100 and 125 mm SPIRO duct and fittings sizes and modern plastic flexible pipe systems with 75 and 90 mm outer diameters. The joints are tight and solid thanks to the use of sealing and locking rings.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Our Adapters are:

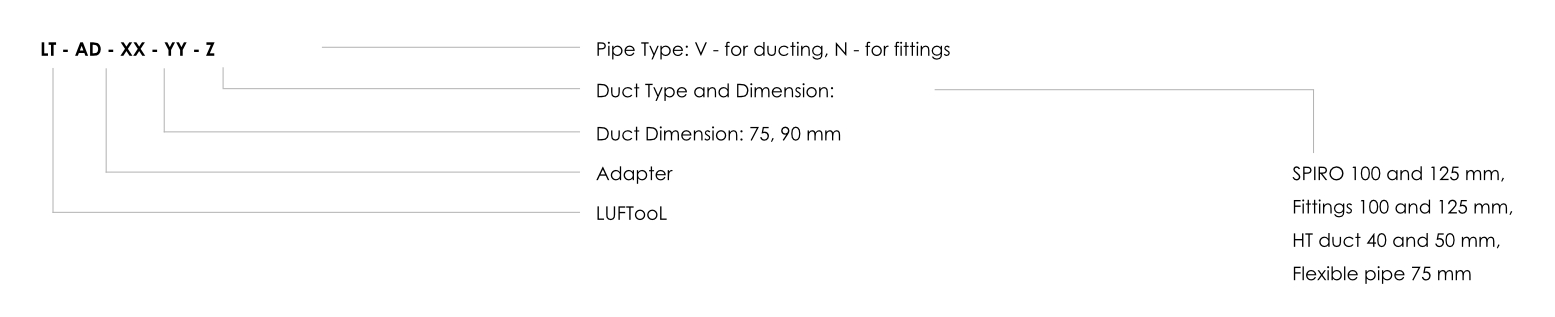

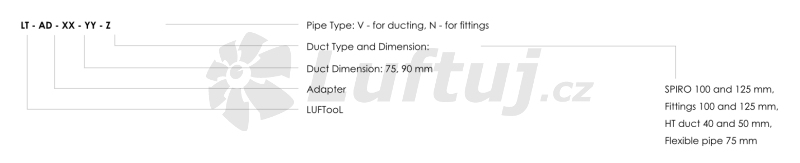

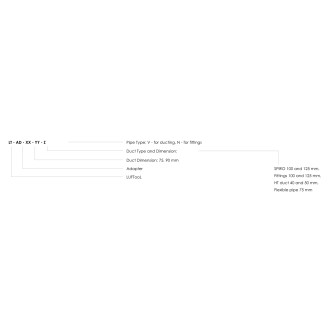

• manufactured in 13 designs
• suitable for flexible pipes of various manufacturers, fittings of SPIRO duct type and for flexible aluminium pipes (SONO, Thermo type, etc. )
• very tight:
– the connection of the flexible pipe and the transition achieves class C tightness (according to EN 15727) thanks to the use of a sealing ring
– the connection of the fitting with the SPIRO duct sealing rubber and the transition achieves class D tightness
(according to EN 15727)
– the connection of the SPIRO duct and the transition is recommended to be sealed with aluminium tape

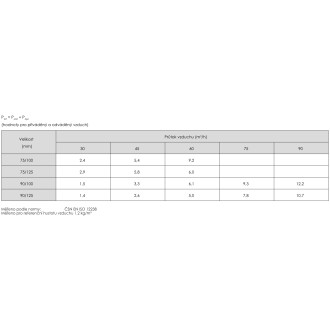

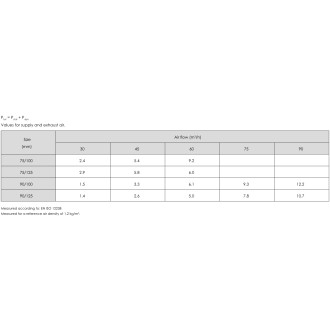

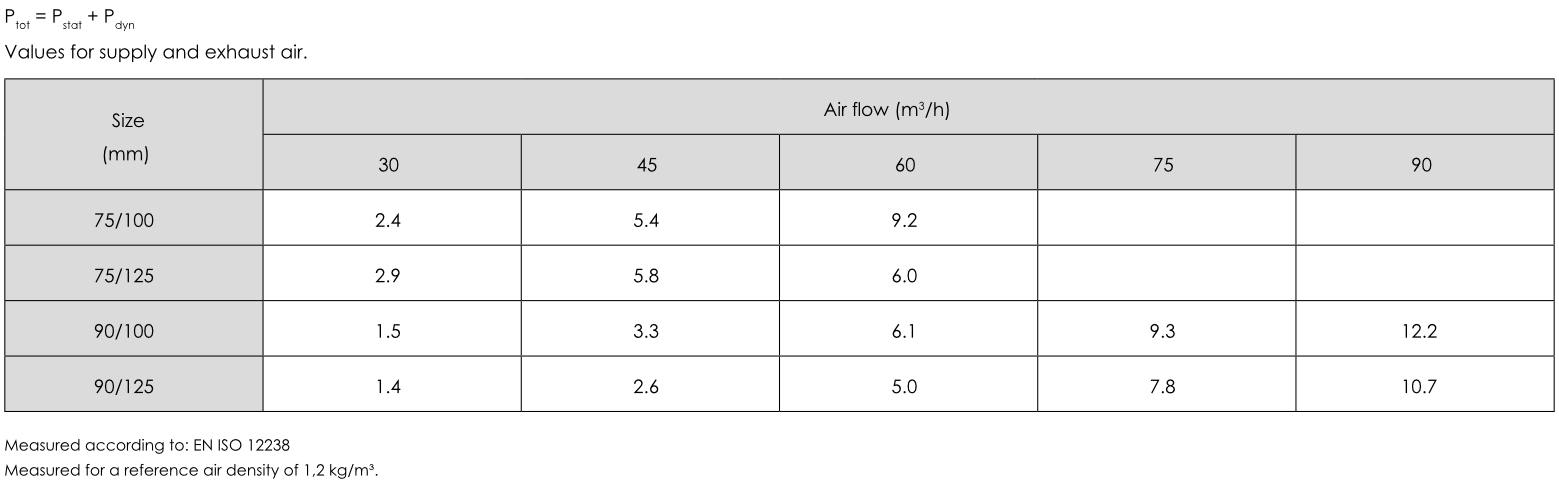

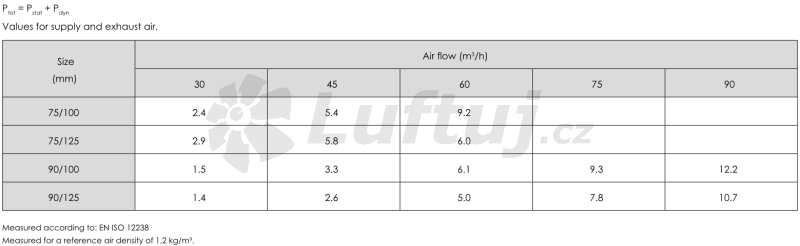

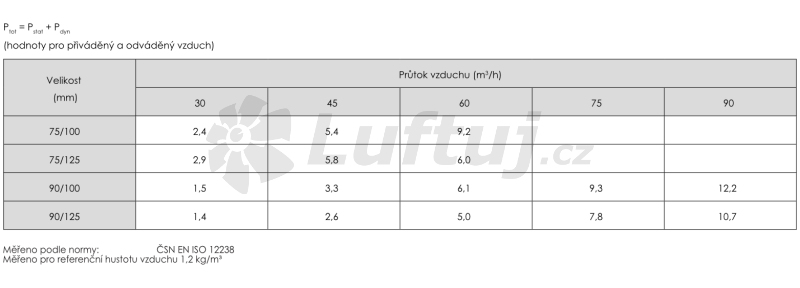

• thanks to their shape and design they achieve low pressure drop values
• made of PETG:
– which is made of a flexible and solid material
– has high impact resistance and durability
– is made from health-safe materials
– has low shrinkage on cooling
– is 100% recyclable
LUFTooL adapters ensure quick installation.

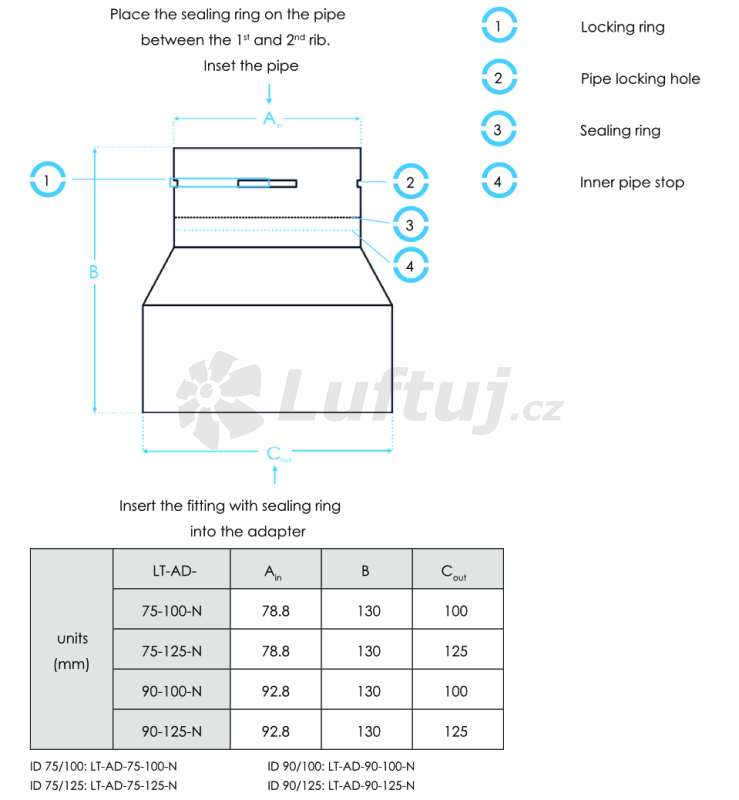

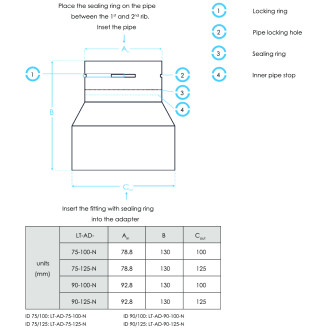

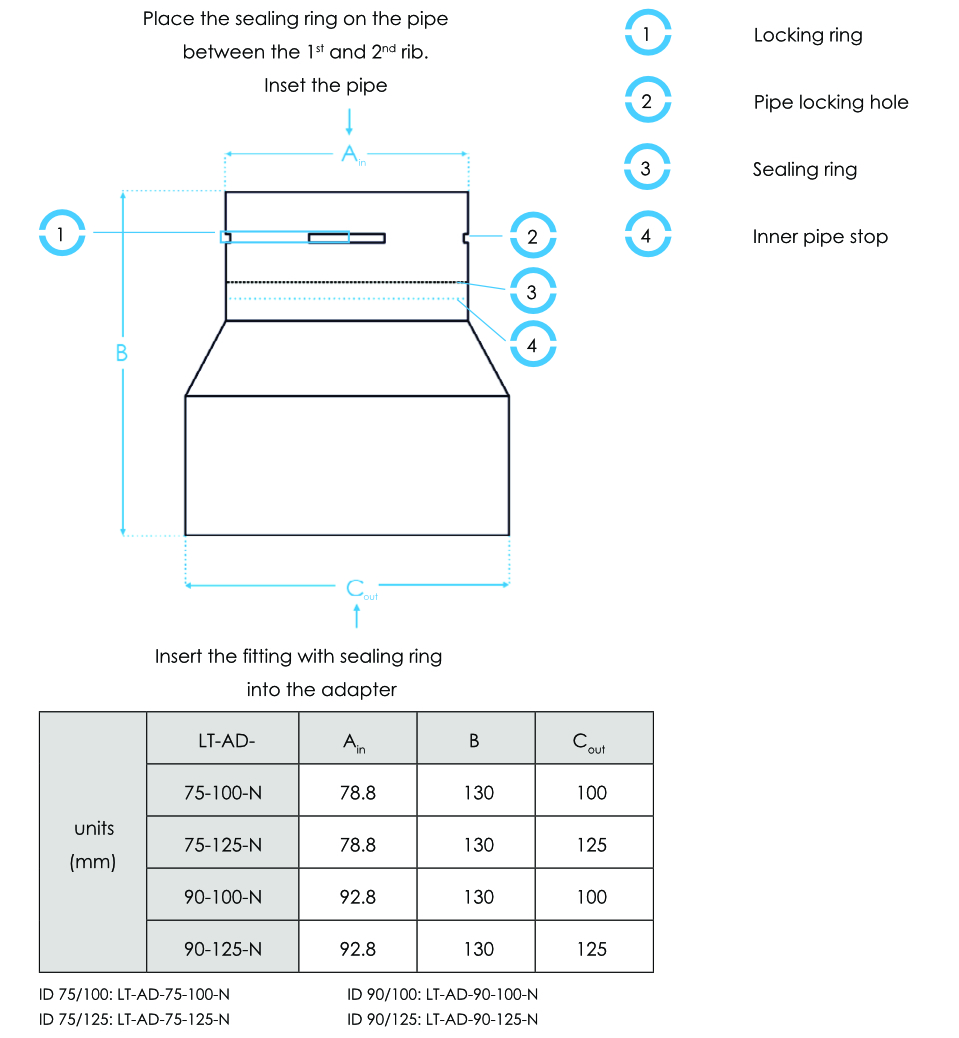

1. Slide the fitting with the sealing ring into the adapter and screw through.
2. Seal with aluminium tape.
Check the anchorage of the pipe in front of and behind the adapter at the maximum distance of 0.5 m.
Package includes:
Plastic transition, sealing and locking ring - according to the number of connected flexible pipes.
Delivery does NOT include aluminium tape. Packed in stretch foil.
